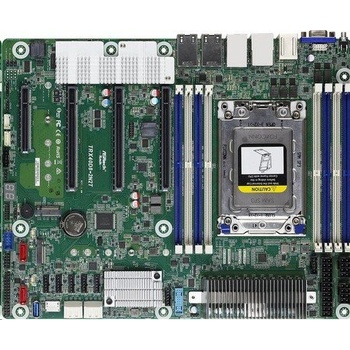

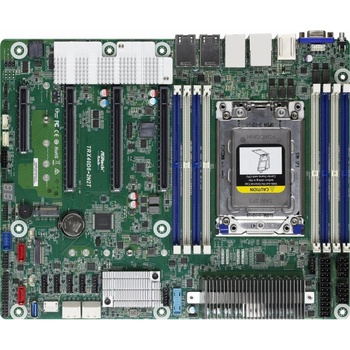

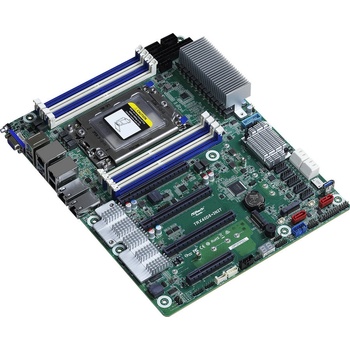

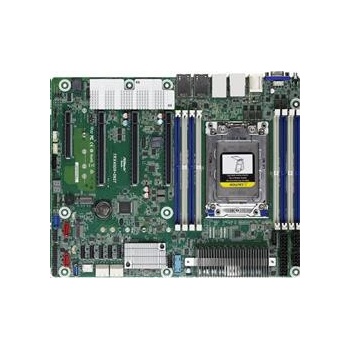

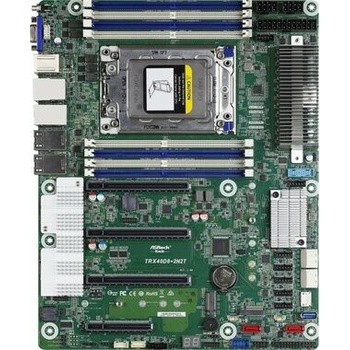

ASRock TRX40D8-2N2T

Specifications Physical Status Form Factor - ATX Dimensions - 12'' x 9.6'' (305 mm x 244 mm) Processor System CPU - Supports AMD Ryzen™ Threadripper™ TR4+ Series Processors Socket - AMD Socket TR4 4094P Chipset - AMD TRX40 System Memory Capacity - 8 x 288-pin DDR4 DIMM slots - Supports up to 256GB DDR4 ECC & non-ECC U-DIMM Type - Dual Channel Memory Technology - Supports DDR4 ECC U-DIMM DIMM Size Per DIMM - ECC U-DIMM: 32GB, 16GB, 8GB, 4GB DIMM Frequency - ECC / non-ECC U-DIMM: 4666(OC)+ / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Voltage - 1.2V Expansion Slot PCIe x 16 - SLOT7: PCIe4.0 x16 - SLOT5: PCIe4.0 x16 - SLOT3: PCIe4.0 x16 PCIe x 8 - SLOT1: PCIe4.0 x8 M.2 - 2 x M-key (PCIe4.0 x4) support 2230/2242/2260/2280/22110 Storage SATA Controller - TRX40: 2 x SATA 6Gb/s; 2x SATA DOM, support RAID 0, 1, 10 Additional Storage Controller - Asmedia 1061: 2 x SATA3 6.0 Gb/s (A_SATA0/A_SATA1) OCuLink for U.2 - 1 OCulink (PCIe3.0 x4) [BTO*] *Please contact ASRock Rack for further information Ethernet Interface - 10Gbps/2.5Gbps LAN Controller - 2 x RJ45 10GbEby Intel® X710-AT2 - 2 x RJ45 2.5GbEby Intel® i225 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports PXE - LAN3 Supports NCSI Management BMC Controller - ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0 with Ikvm and vMedia support IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management Features - NMI Graphics Controller - ASPEED AST2500 VRAM - DDR4 16MB Rear Panel I/O PS/2 KB/Mouse - 1 VGA Port - 1 x D-Sub USB 3.2 Gen1 Port - 2 USB 3.2 Gen2 Port - 2 (1 type A, 1 type C) Lan Port - 2 x RJ45: 2 x 10GbE by Intel® X710-AT2 - 2 x RJ45: 2 x 2.5GbE by Intel® i225 - 1 x IPMI dedicated LAN - LAN Ports with LED (ACT/LINK LED and SPEED LED) UID Button/UID LED - 1 Power connector in Front side Power connector - 1 ATX 24-pin, 2 ATX 12V 8-pin Internal Connector COM Header - 1 SATA DOM - 2 SPI connector - 1 Auxiliary Panel Header - 1 (includes chassis intrusion, location button & LED, system fault LED, and front LAN LED) TR1 Header - 1 TPM Header - 1 IPMB Header - 1 VGA Header - 1 Buzzer - 1 Fan Header - 6 x 6-pin Fans ATX Power - 1 x (24-pin) + 1 x (8-pin) + 1 x (8-pin) USB 3.2 (Gen1) Header - 1 USB 2.0 Header - 1 (support 2 USB2.0 ports) Type A USB 3.2 (Gen1) Port - 1 NMI Button - 1 Front Panel - 1 (RST, PWRBTN, HDDLED, PWRLED) System Panel - 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header - 1 BMC_SMB Header - 1 Clear CMOS - 1 (short pad) PSU SMB Header - 1 Onboard LED Standby PWR LED 5vsb - 1 80 Debug Port LED - 1 Fan Fail LED - 6 (Fan Fail LED only ) System BIOS BIOS Type - BIOS Type 32Mb AMI UEFI Legal BIOS BIOS Features - Plug and Play (PnP) - ACPI 2.0 Compliance Wake Up Events - SMBIOS 2.8 Support - ASRock Rack Instant Flash Hardware Monitor Temperature - CPU Temperature Sensing - System Temperature Sensing - Card side Temperature Sensing - System TR Temperature Sensing Fan - CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control Voltage +3VSB, +5VSB, VCORE, VCORE_NB, VCCM_AB, VCCM_CD, BAT, 3V, 5V, 12V Support OS OS Microsoft® Windows® - Windows® 10 (64 bit) Linux - CentOS 8.1 (64 bit) *The Linux system does not support Raid mode. *Please refer to our website for the latest OS support list. Environment Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
