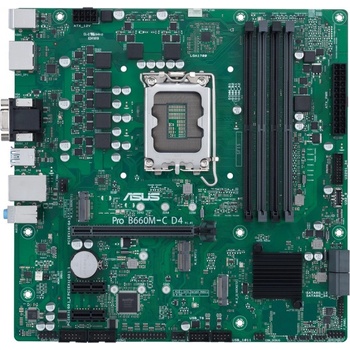

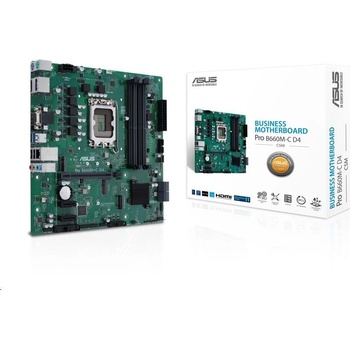

Asus PRO B660M-C D4-CSM 90MB19B0-M1EAYC

Pro B660M-C D4-CSM

Micro-ATX B660 business motherboard with enhanced security, reliability, manageability and serviceability

• Intel LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
• ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
• Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

Model

Pro B660M-C D4-CSM

CPU

Intel Socket LGA1700 for 13th Gen Intel Core™ Processors & 12th Gen Intel Core™, Pentium Gold and Celeron ProcessorsSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0***Refer to www.asus.com for CPU support list.**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B660 Chipset

Memory 4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel Extreme Memory Profile (XMP)Optimem*Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics 2 x DisplayPort**1 x D-Sub port1 x HDMI port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel 13th & 12th Gen Processors1 x PCIe 4.0/3.0 x16 slotIntel B660 Chipset2 x PCIe 3.0 x1 slots

Storage

Supports 2 x M.2 slots and 4 x SATA 6Gb/s portsIntel 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280- Intel 12th Gen processors support PCIe 4.0 x4 modeIntel B660 Chipset**M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet 1 x Intel 1Gb EthernetASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)**Wi-Fi module is sold separately.

USB

Rear USB (Total 4 ports)2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (suppports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback "* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A)2 x USB 2.0 ports (2 x Type-A)2 x DisplayPort1 x HDMI port1 x D-Sub port1 x Intel 1Gb Ethernet port3 x Audio jacks1 x PS/2 keyboard (purple) port1 x PS/2 mouse (green) port

Internal I/O Connectors

Fan and cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (suppports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Chassis Intrude header2 x COM Port headers1 x Front Panel Audio header (AAFP)1 x COM debug header1 x LPT header1 x Mono-out header(with Amp IC)1 x M.2 slot (Key E)1 x SMBUS header1 x Speaker header1 x 10-1 pin System Panel header

Special Features

ASUS EZ DIY- Box HeadersBespoke Motherboard Design & Business Focused Features- Q-LED Core- ASUS Self Recovering BIOS- ASUS Event Log- ASUS Commercial BIOS kit- Anti-Moisture- 24/7 Reliability- Overcurrent ProtectionTPM IC onboard

Software Features

ASUS Exclusive SoftwareIT Management software supported- ASUS Control Center Express(ACCE)

BIOS 128Mb Flash ROM

Manageability

WOL by PME, PXE

Accessories

Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 SSD screw package1 x M.2 Key E screw packageInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User guide

Operating System

Windows 11, Windows 10 64-bit

Form Factor microATX24.4cm x 24.4cm
