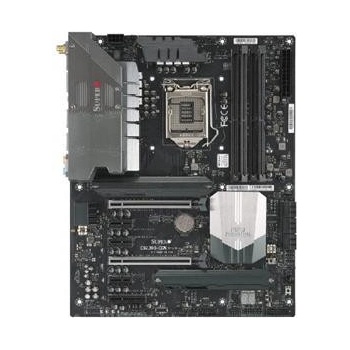

Supermicro MBD-C9Z390-CGW-O

Product SKUs

MBD-C9Z390-CGW C9Z390-CGW

Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.48cm x 24.38cm)

Processor/Cache

CPU Intel® 8th/9th Generation Core? i9/Core? i7/Core?i5/Core?i3/Pentium®/Celeron® series Processor.

Single Socket H4 (LGA 1151) supported, CPU TDP support Up to 120W TDP

System Memory

Memory Capacity Up to 64GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 8th series and Gen 9th core i3, Pentium and Celeron) Up to 128GB Unbuffered non-ECC UDIMM, in 4 DIMM slots (Limited to Gen 9th core i5/i7/i9)

Memory Type 2666MHz/2400MHz DDR4 288-pin Non-ECC UDIMM

DIMM Sizes 4GB, 8GB, 16GB, 32GB

Memory Voltage 1.2V

On-Board Devices

Chipset Intel® Z390 Express

SATA Intel® Z390 Express controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Network Controllers Single LAN with Intel® single Ethernet PHY i219V

Single LAN with Aquantia® AQC107 10G Ethernet Controller

Graphics DP up to 1.2; HDMI up to 1.4b

Input / Output

SATA 6 SATA3 (6Gbps) port

LAN 1 RJ45 Gigabit Ethernet LAN ports 1 RJ45 10GBase-T ports

USB 2 USB 2.0 ports (2 via headers, Type A)) 4 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers) 5 USB 3.1 Gen2 ports (3 Rears Type A + 1 Rear Type C, 1 via header); Internal USB 3.1 Gen2 port supports one Type C device

Video Output 2 DP (DisplayPort) ports, 1 HDMI port,

DP up to 1.2; HDMI up to 1.4b

Serial Port / Header 1 COM Port (1 header)

TPM 1 TPM Header

Expansion Slots

PCI-E 2 PCI-E 3.0 x16 slots (16/NA or 8/8), 1 PCI-E 3.0 x4, 3 PCI-E 3.0 x1

• M.2 M.2 Interface: 2 PCI-E 3.0 x4, RAID 0 & 1 and 1 CNVi
• Form Factor: 2242/2260/2280/22110, 2242/2260/2280, 2230
• Key: M-Key , M-Key , E-Key

One Wi-Fi+BT WiFi module is pre-installed in the M.2 E-Key slot

System BIOS

BIOS Type AMI 32Mb SPI Flash ROM

BIOS Features ACPI 6.0

UEFI 2.4

SMBIOS 3.0 or later

Management

Software SuperDoctor® 5, Watchdog

System Management Software SuperDoctor 5

Power Configurations Power-on mode for AC power recovery

PC Health Monitoring

Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 5 (4-pin)

FAN 5 fans with tachometer status monitoring

Temperature PECI

LED +5V Standby alert LED

Other Features Chassis intrusion header

Parts List ?

Parts List (Bulk Package)

Name Part Number Qty Description

Motherboard MBD-C9Z390-CGW 1 C9Z390-CGW Motherboard --

Parts List (Retail Package)

Name Part Number Qty Description

Motherboard MBD-C9Z390-CGW 1 MBD-C9Z390-CGW Motherboard

IO shield MCP-260-00138-0N 1 C9Z390-CGW IO Shield

Quick Reference Guide MNL-2098-QRG 1 C9Z390-CGW Quick Reference Guide

SATA cable CBL-0044L 4 57.5CM SATA FLAT S-S PBF

Driver CD 1 C9 Driver CD

Metal badge 1 SuperO metal badge

WiFi+BT Antenna CBL-ANTDB-SMA 2 C9Z390-CGW WiFi+BT Antenna

Chassis (Optimized for C9Z390-CGW)

Embedded Compact 1U 2U 3U Mid/Mini-Tower 4U/Tower

SCGS5A-754K

SCGS5A-753B

SC732D3-1200B

SC732D3-903B

SC732D4-500B 4U Heatsink:SNK-P0051AP4
