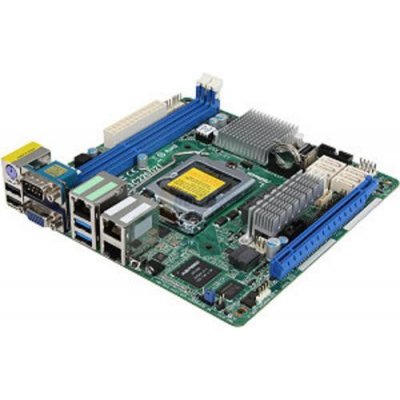

ASRock E3C226D2I

Mini ITX 6.7" x 6.7"

Single socket H3 (LGA 1150)

Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150) 2x DIMM DDR3 1600/1333, Max. 16GB 1 x PCIe 3.0 x16 6 x SATA3 by Intel C226 support RAID Mini ITX 6.7" x 6.7"

Single socket H3 (LGA 1150)

Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150) 2x DIMM DDR3 1600/1333, Max. 16GB 1 x PCIe 3.0 x16 6 x SATA3 by Intel C226 support RAID 0,1,5,10 2 x Intel i210, support Dual GLAN with teaming function

ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN 4 x USB 3.0 ports (2 rear + 2 via header ) 5 x USB 2.0 ports (2 rear + 2 via header + 1 Type A)

Specifications

MB Physical Status

Form Factor - Mini ITX

Dimensions - 6.7'' x 6.7'' (17.02 cm x17.02 cm)

Processor System

• CPU - Supports New 4th and 4th Generation Intel® Xeon E3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
• Supports Hyper-Threading Technology

* Due to Graphics control by AST2300, E3-1200 series integrated graphics can’t be used.

Socket - Single Socket H3 (LGA1150)

Power Design - 6 Power Phase Design

Chipset - Intel® C226

System Memory

Capacity - 2 x 240-pin DDR3 DIMM slots - Support up to 16GB DDR3 ECC DIMM

Type - Dual Channel DDR3 memory technology - Supports DDR3 1600/1333 ECC DIMM

Voltage - 1.5V, 1.35V

Expansion Slot

PCIe 3.0 x 16 - 1 slot (x16 mode)

Storage

SATA Controller - Intel® C226 : 6 x SATA3 6.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage

Ethernet

Interface - Gigabit LAN 10/100/1000 Mb/s

LAN Controller - 2 x Intel® i210

• Supports Wake-On-LAN
• Supports Energy Efficient Ethernet 802.3az
• Supports Dual LAN with Teaming function
• Supports PXE

Management

BMC Controller - ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support

IPMI Dedicated LAN - 1 x Realtek RTL8211E for dedicated management LAN

Features - Watch Dog - NMI

Graphics

Controller - ASPEED AST2300

VRAM - DDR3 16MB

Output - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Rear Panel I/O

PS/2 KB/Mouse - 1

VGA Port - D-sub x 1

USB 2.0 Port - 2

USB 3.0 Port - 2

Lan Port - 2 x RJ45 Gigabit Ethernet LAN ports

• 1 x RJ45 Dedicated IPMI LAN port
• LAN Ports with LED (ACT/LINK LED and SPEED LED)

Serial Port - 1 (COM1)

UID Button/UID LED - 1

Internal Connector

COM Port Header - 1 (COM2)

Auxiliary Panel Header - 1 (include chassis intrusion, location button & LED, front LAN LED)

IPMB Header - 1

Fan Header - 3 x 4-pin

ATX Power - 1 (24-pin) + 1 (4-pin)

USB 3.0 Header - 1 (each support 2 USB 3.0)

USB 2.0 Header - 1 (each support 2 USB 2.0)

Type A USB 2.0 Port - 1

System BIOS

BIOS Type - 64Mb AMI UEFI Legal BIOS

BIOS Features - Plug and Play (PnP)

• ACPI 1.1 Compliance Wake Up Events
• SMBIOS 2.3.1 Support
• DRAM Voltage Multi-adjustment
• ASRock Instant Flash

Hardware Monitor

Temperature - CPU Temperature Sensing - System Temperature Sensing

Fan - CPU/Rear/Front Fan Tachometer

• CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
• CPU/Rear/Front Fan Multi-Speed Control

Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB

Support OS

OS Microsoft Windows

• Server 2008 R2 (x64)
• Server 2012 (x64)

Linux

• RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
• CentOS 5.5 / 6.4 (x32 and x64)
• SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
• FreeBSD 9.1 (x32/x64)
• Fedora core 18 (x64)
• Ubuntu 12.04/12.10 (x64)

Virtual

• VMWare ESXi 5.1
• VMWare ESXi 5.5 (AHCI mode)

Environment

Temperature - Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
