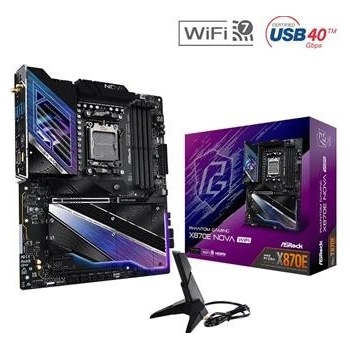

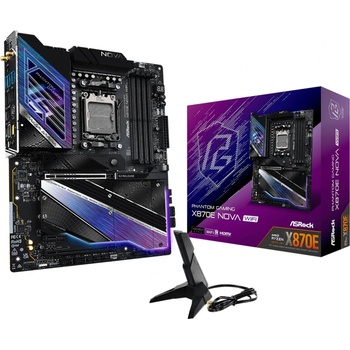

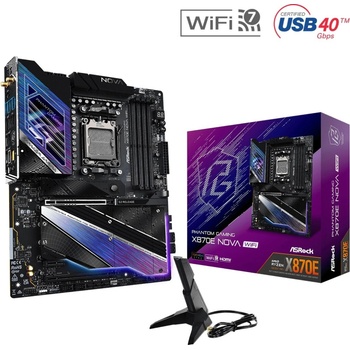

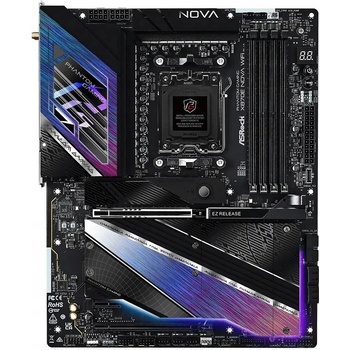

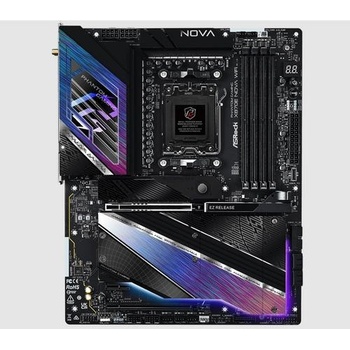

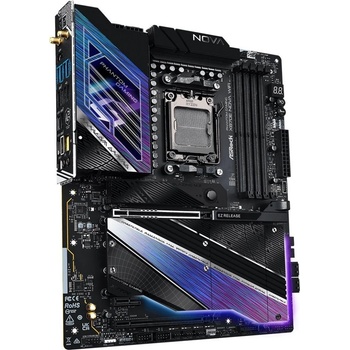

ASRock X870E NOVA WIFI

ASRock X870E Nova WiFi

Nova is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.

• Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
• 20+2+1 Phase Power Design, 110A SPS for VCore+SOC
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8200+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: 2 USB4 Type-C, 1 HDMI
• Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
• 1 Blazing M.2 (PCIe Gen5x4)
• 3 Hyper M.2 (PCIe Gen4x4)
• 1 M.2 (PCIe Gen3x2 & SATA3)
• 4 SATA3
• 2 USB4 Type-C (Rear)
• 1 USB 3.2 Gen2x2 Type-C (Front)
• 5 USB 3.2 Gen2 Type-A (Rear)
• 7 USB 3.2 Gen1 (3 Rear, 4 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• 5Gbps LAN
• 802.11be Wi-Fi 7 + Bluetooth
• Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink

Unique Feature

Superb Productivity

• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability

• Server-Grade Low-Loss PCB
• 20+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming
• 5G LAN, 802.11be Wi-Fi 7 Module
• ASRock Lightning Gaming Ports

EZ Update

• BIOS Flashback Button
• ASRock Auto Driver Installer

CPU - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* *The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)

Chipset - AMD X870E

Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS - 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*

* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

LAN

• 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s
• Realtek RTL8126

Wireless LAN

• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 160MHz channel bandwidth with 6GHz* frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO

* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.

Slots

CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

• 1 x PCIe 3.0 x1 Slot (PCIE2), supports x1 mode*
• 1 x PCIe 3.0 x16 Slot (PCIE3), supports x2 mode*
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

If M2_5 is occupied, PCIE3 will be disabled.

Supports NVMe SSD as boot disks

Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x M.2 Socket (M2_5, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
• 2 x SATA3 6.0 Gb/s Connectors

ASMedia ASM1061: - 2 x SATA3 6.0 Gb/s Connectors * M2_1 is the first priority for M.2 installation.

M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.

Supports NVMe SSD as boot disks

If M2_5 is occupied, PCIE3 will be disabled.

RAID

• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

CPU:

• 2 x USB4 Type-C (Rear)
• 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7))

Chipset:

• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56))
• 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection

Connector

• 3 x Thermistor Cable Headers
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15µ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
• 1 x Dr. Debug with LED
• 1 x Power Button with LED
• 1 x Reset Button with LED

•  Supports in total up to 12V/3A, 36W LED Strip
• * Support in total up to 5V/3A, 15W LED Strip
• ** CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).

CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)*
• 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
• 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x Clear CMOS Button
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

* Supports USB PD 3.0 up to 5V@3A (15W) charging

Software and UEFI

Software

• ASRock Motherboard Utility (Phantom Gaming Tuning)
• ASRock Phantom Gaming LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

• 4 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 1 x ARGB Splitter Cable
• 3 x Thermistor Cables

Form Factor

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 8 Layer PCB
• 2oz Copper PCB

OS - Microsoft Windows 10 64-bit / 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
