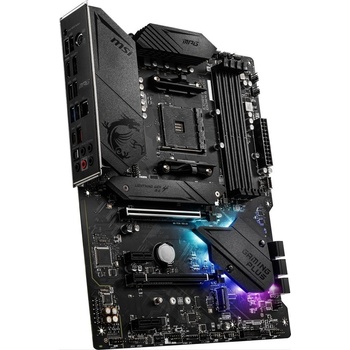

MSI MPG B550 GAMING PLUS

MPG B550 GAMING PLUS

TECHNICAL SPECIFICATIONS

CPU

Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

Chipset

AMD B550 Chipset

Memory 4x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

Slots 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2x PCIe 3.0 x1 slotsThe supported specification depends on installed processor.When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Onboard Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

Maximum shared memory of 16 GBAvailable for the processor with integrated graphics.

MULTI-GPU

Supports 2-Way AMD CrossFire™ Technology

Storage

AMD B550 Chipset 6x SATA 6Gb/s ports 2x M.2 slots (Key M)

M2_1 slot (from AMD Processor)

Supports PCIe 4.0/ 3.0 x4 1

Supports SATA 6Gb/s

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 slot (from AMD B550 chipset)

Supports PCIe 3.0x4

Supports 2242/ 2260/ 2280 storage devices

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Audio

Realtek® ALC892 Codec 7.1-Channel High Definition Audio

Supports S/PDIF output

LAN 1x Realtek® 8111HN Gigabit LAN controller

Internal Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1xTPM module connector 1x Clear CMOS jumper

Back Panel Ports

PS/2 Combo Port

DisplayPort

LAN Port

USB 3.2 Gen 2 10Gbps (Type-A)

HD Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 2.0

USB 3.2 Gen 1 5Gbps (Type-A)

USB 3.2 Gen 2 10Gbps (Type-C)

Optical S/PDIF OUT

Led Features 1x EZ LED Control switch 4x EZ Debug LED

I/O Controller

NUVOTON NCT6687-R Controller Chip

Hardware Monitor

CPU/ System/ Chipset temperature detection

CPU/ System/ Pump fan speed detection

CPU/ System/ Pump fan speed control

Dimensions

ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Mounting 9 mounting holes
