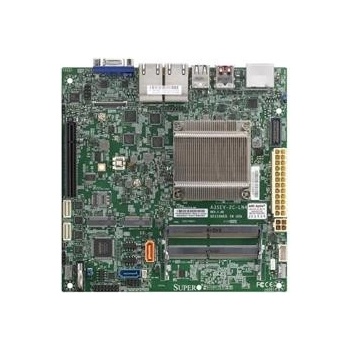

Supermicro MBD-A3SEV-4C-LN4-B

Key Features

Intel® Atom® Processor x6425E

Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP

Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots 1 PCIe 3.0 X2 (in x8 slot) 1 M.2 B-Key SATA/PCIe 3.0 x2/USB 3.0, 3042/2280 1 M.2 E-Key PCIe 3.0 x1/USB 2.0, 2230

Single LAN with Intel® Ethernet Controller I210IT

ONLY i210 support PXE 3 LAN with 1GbE with Marvell® 88E1512

System on Chip 1 DP (DisplayPort) port, 1 HDMI port, 1 VGA port, 1 eDP (Embedded DisplayPort) port, Supports 3 independent displays

Optimized Servers

SYS-E302-12E

Product SKUs

MBD-A3SEV-4C-LN4

Physical Stats

Form Factor

Mini-ITX

Dimension 6.7" x 6.7" (17.02cm x 17.02cm)

Processor

CPU

Intel® Atom® Processor x6425E

Single Socket FCBGA-1493 supported, CPU TDP supports Up to 12W TDP

Core

Up to 4 cores, 4 threads

System Memory

Memory Capacity 2 DIMM slots

Up to 32GB Unbuffered non-ECC SODIMM, DDR4-3200MHz

Memory Type 3200 MT/s non-ECC DDR4 SODIMM Unbuffered 3200MHzMT/s 260pin up to 32GB

DIMM Sizes 8GB, 16GB

Memory Voltage 1.2V

On-Board Devices

Chipset

System on Chip

Audio

ALC 888S HD Audio

Graphics 1 Intel® HD Graphics port(s)

Network Controllers

Single LAN with Intel® Ethernet Controller I210IT, ONLY i210 support PXE 3 LAN with 1GbE with Marvell® 88E1512

Input / Output

SATA 2 SATA3 (6Gbps) port(s)

LAN 4 RJ45 Gigabit Ethernet LAN ports

USB 2 USB 3.1 Gen2 port(s) (2 rear type A) 6 USB 2.0 port(s) (4 via header; 2 rear)

Video Output 1 VGA port(s), 1 DP (DisplayPort) port(s), 1 HDMI port(s), 1 eDP (Embedded DisplayPort) port(s)

Serial Port 4 COM Port(s) (4 header)

TPM 1 TPM Header & Chip both

Expansion Slots

PCIe 1 PCIe 3.0 X2 (in x8 slot)

M.2

• M.2 Interface: 1 SATA/PCIe 3.0 x2/USB 3.0; 1 PCIe 3.0 x1/USB 2.0
• Form Factor: 3042/2280, 2230
• Key: B-Key, E-Key

System BIOS

BIOS Type

AMI UEFI

BIOS Features

ACPI 6.2 or later

UEFI 2.7

Plug and Play (PnP)

SMBIOS 3.3 or later

DMI 2.3

USB Keyboard support

RTC (Real Time Clock) Wakeup

Management

Software

SuperDoctor® 5, Watchdog

Power Configurations

ACPI Power Management, +12V DC Power Input

PC Health Monitoring

Voltage

VBAT, System temperature, System level control, Chassis intrusion header, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages

LED

Standby alert LED

CPU / System Overheat LED

Temperature

Monitoring for CPU and chassis environment

CPU thermal trip support

FAN

Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, Overheat LED indication

Other Features

WOL, System level control, RoHS, CPU thermal trip support for processor protection, Chassis intrusion header, ATX Power connector, ACPI power management, 12V DC or ATX Power Source, 4-pin 12v DC power connector

Operating Environment

Operating Temperature Range -30°C - 70°C (-22°F - 158°F)

Non-Operating Temperature Range -40°C - 85°C (-40°F - 185°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non Operating Relative Humidity Range 10% - 95% (non-condensing)

Standard Parts (Bulk Package)

Part Number

Qty

Description

I/O Cables

CBL-0044L •  1 57.5CM SATA FLAT S-S PBF

I/O Shield

MCP-260-00058-0N 1

Standard I/O Shield for A2SAV with EMI Gasket

Standard Parts (Retail Package)

Part Number

Qty

Description

I/O Cables

CBL-0044L •  2 57.5CM SATA FLAT S-S PBF

I/O Shield

MCP-260-00058-0N 1

A3SEV standard 2U I/O Shield

QRG

MNL-2355-QRG 1

Motherboard Quick Reference Guide

Optional Parts

Part Number

Qty

Description 1U I/O Shield

MCP-260-00068-0B 1 1U I/O Shield for A3SEV with EMI Gasket in CS 505/504

Audio Cable

CBL-OTHR-0985 1

Audio Cable 30cm

COM Port Cable

CBL-CDAT-0685 1

COM Cable 30cm

SATA Cables

CBL-0044L •  1 57.5CM SATA FLAT S-S PBF

SATA Power Cable

CBL-PWEX-0982 1

SATA Power Cable 25cm

USB Cable

CBL-CUSB-0983 1

USB2.0 cable 20cm
