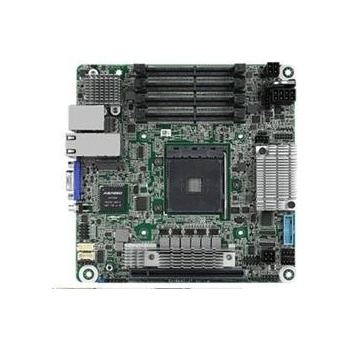

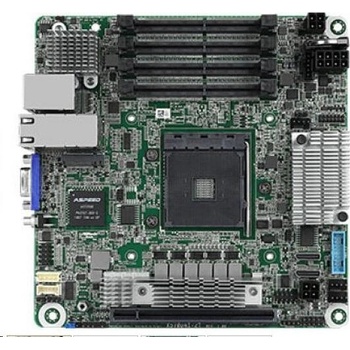

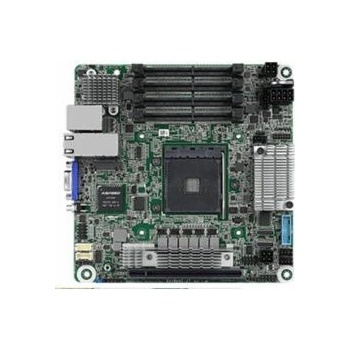

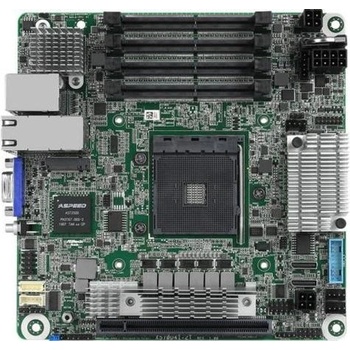

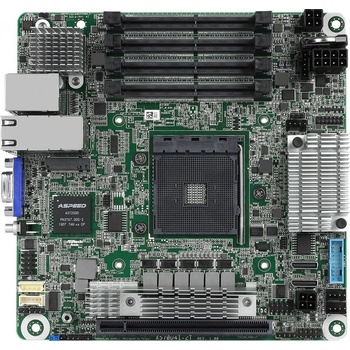

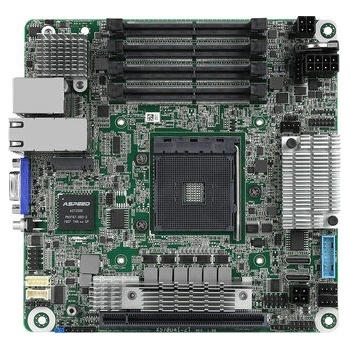

ASRock X570D4I-2T

Specifications

MB Physical Status

Form Factor - mini-ITX

Dimensions - 6.7'' x 6.7'' (17.02 cm x17.02 cm)

Processor System

CPU - AMD Ryzen™ 3rd Generation Series Processors(Max 105W) *We recommend using the CPU HS listed in the Cooler QVL section on our ASRock Rack website.

Socket - AM4 PGA 1331

Chipset - AMD Premium X570

System Memory

Capacity - 4 x DDR4 SO DIMM slots

Type - Dual Channel DDR4 memory technology, Support DDR4 ECC & non-ECC SO DIMM "-Supports DDR4 ECC/UDIMM,up to 2933MHz

One DIMM: 1R DIMM @2933MT/s; 2R/2DR DIMM@2400T/s

Two DIMMs: (2) 1R DIMM @2400 MT/s; (2) 2R/2DR DIMM@2400MT/s; Max. capactiry of system memory:64 GB "

Voltage - 1.2V

Expansion Slot

PCIe 4.0 x 16 -PCIE7: Gen4x16 link (Matisse)* *When use Picasso CPU, only PCIe3.0 x8

Storage

SATA Controller - AMD X570:8 x SATA3 by OCulink

M.2 slot -1 (2280, supports PCIe 4.0 x4/SATA3 6.0Gb/s)* *When use Picasso CPU, only PCIe3.0 x4

Ethernet

Interface - 10000/1000 /100 /10 Mbps

LAN Controller - 2 x RJ45 10GLAN by Intel® X550-AT2

• Supports Wake-On-LAN
• Supports Energy Efficient Ethernet 802.3az
• Supports Dual LAN with Teaming function
• Supports PXE

Management

BMC Controller - ASPEED AST2500

IPMI Dedicated GLAN - 1 x Realtek RTL8211E for dedicated management GLAN

Features - Watch Dog

Graphics

Controller - ASPEED AST2500

VRAM - DDR4 16MB

Rear Panel I/O

VGA Port - 1 x D-Sub

USB 3.1 Gen2 Port - 2(Gen2)

Lan Port - RJ45:2+1(IPMI) - LAN Ports with LED (ACT/LINK LED and SPEED LED)

UID Button/UID LED - 1

Internal Connector

COM Header - 1

SATA DOM - 0

M.2 - 1(M-key,only 2280, Support PCIe 4.0 x4 or SATA3 6.0Gb/s) *When use Picasso CPU, only PCIe3.0 x4

OCuLink -2(4xSATA3 6.0Gb/s/PCIe 4.0x4 for each) *When use Picasso CPU, only PCIe3.0 x4

Auxiliary Panel Header - 1 (include Caseopen,sys_fault_LED, 2FLANLED) )

TPM Header - 1(13pin)

IPMB Header - 1

Buzzer - N/A

Fan Header - 3(4-pin Fan header)

USB 3.1 (Gen1) Header - 1 (support 2 USB 3.0)

USB 2.0 Header - N/A

Front Panel - 1 (RST, PWRBTN, HDDLED, PWRLED)

Speaker Header - 1(4pin)

SMBUS from BMC - 1

Power Connector - 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)

ME/SPS Recovery - N/A

Clear CMOS - 1

PSU SMB Header - 1

Onboard LED 80 Debug Port LED - N/A

Fan Fail LED - 3

System BIOS

BIOS Type - 32MB AMI UEFI Legal BIOS

BIOS Features - Plug and Play (PnP)

• ACPI 2.0 Compliance Wake Up Events
• SMBIOS 2.8.0 Support
• ASRock Rack Instant Flash

Hardware Monitor

Temperature - CPU/DDR temperature sensing - MB/Card side temperature sensing

Fan - Fan Tachometer

• Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
• Fan Multi-Speed Control

Voltage - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB

Environment

Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
