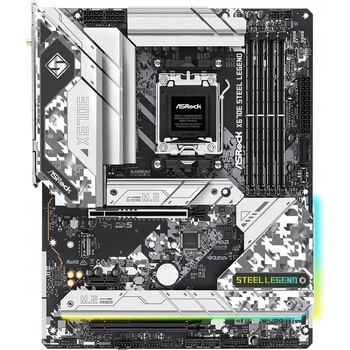

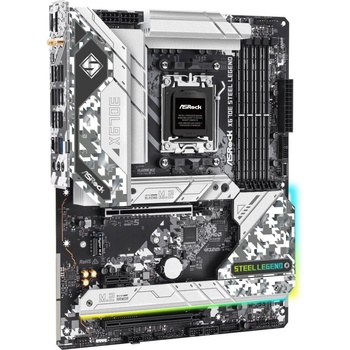

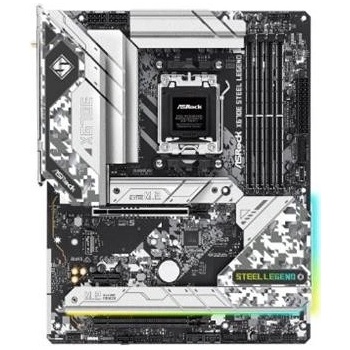

ASRock X670E STEEL LEGEND

X670E Steel Legend

Supports AMD Ryzen™ 7000 Series Processors 16+2+1 Phase Power Design, SPS 4 x DDR5 DIMMs, supports up to 6600+(OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1

Graphics Output Options: 1 HDMI, 1 DisplayPort

Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2(PCIe Gen5x4), 3 Hyper M.2 (PCIe Gen4x4), 4 SATA3 2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 1 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front)

Realtek 2.5G LAN, Realtek 1G LAN 802.11ax Wi-Fi 6E + Bluetooth

Unique Feature

Superb Productivity

• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5

Rock-Solid Durability

• Server-Grade Low-Loss PCB
• 16+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

Ultrafast Connectivity - 2.5G LAN, 802.11ax Wi-Fi 6E Module

EZ Update

• BIOS Flashback Button
• ASRock Auto Driver Installer

EZ Troubleshooter - ASRock Post Status Checker

CPU - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

Chipset - AMD X670

Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)
• Max. capacity of system memory: 128GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS - 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)

• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio

LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)

• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control

1 x Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111)

Wireless LAN

• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

A 6GHz compatible router is required for 6E functionality.

Slots

CPU:

• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

Chipset:

• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Supports AMD CrossFire™
• 15µ Gold Contact in VGA PCIe Slot (PCIE1)

*Supports NVMe SSD as boot disks

Storage

CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

Connector

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
• 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

• Supports in total up to 12V/3A, 36W LED Strip
• *Support in total up to 5V/3A, 15W LED Strip
• **CPU_FAN1 supports the fan power up to 1A (12W).
• ***CPU_FAN2/WP supports the fan power up to 2A (24W).
• ****CHA_FAN1~4/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 6 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 2 x RJ-45 LAN Ports
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

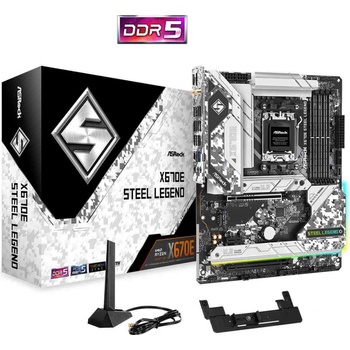

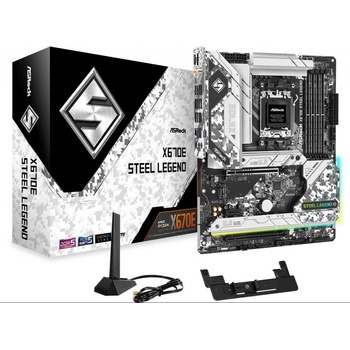

Accessories

• 1 x User Manual
• 2 x SATA Data Cables
• 1 x ASRock WiFi 2.4/5/6 GHz Antenna
• 4 x Screws for M.2 Sockets
• 1 x Standoff for M.2 Socket

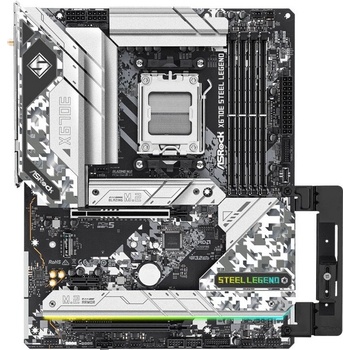

• 1 x Graphics Card Holder

Form Factor

• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 8 Layer PCB

OS - Microsoft® Windows® 10 64-bit / 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
