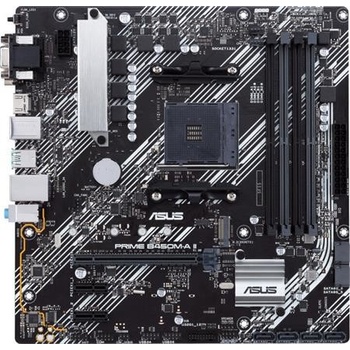

Asus PRIME B450M-A II 90MB15Z0-M0EAY0

Základná doska AMD B450 (s päticou Ryzen AM4) veľkosti micro ATX s podporou rozhrania M.2, portami HDMI/DVI-D/D-Sub, USB-A 3.2 Gen 2, rozhraním SATA s prenosovou rýchlosťou až 6 Gb/s, ethernetovým portom s prenosovou rýchlosťou až 1 Gb/s, funkciou BIOS FlashBack™ a podporou osvetlenia Aura Sync RGB

• Komplexné chladenie: chladič napájacej kaskády, chladič čipsetu (PCH) a nástroj Fan Xpert 2+
• Extrémne rýchle pripojenie: podpora rozhrania M.2, 1Gb Ethernet a USB-A 3.2 Gen 2
• 5X Protection III: Viacnásobné hardvérové zabezpečenie pre ochranu celého systému
• Osvetlenie Aura Sync RGB: Vstavaný konektor pre RGB LED pásky, synchronizovaný s neustále sa rozširujúcim portfóliom hardvéru Aura Sync

CPU

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors * * Refer to www.asus.com for CPU support list

Chipset

AMD B450

Memory 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *

Dual Channel Memory Architecture

ECC Memory (ECC mode) support varies by CPU.

• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
• The maximum memory frequency supported varies by processor.

Graphic

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors * 1 x D-Sub 1 x DVI-D 1 x HDMI 2.0b *Graphics specifications may vary between CPU types.

Expansion Slots 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode)

AMD Athlon™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x4 mode)

AMD B450 chipset 2 x PCIe 2.0 x1

Storage

Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)

Athlon™ with Radeon™ Vega Graphics Processors : *1 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode) 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : 2 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

AMD B450 chipset : 4 x SATA 6Gb/s port(s),

Support Raid 0, 1, 10

LAN

Realtek® RTL8111H

ASUS LANGuard

Audio

Realtek 7.1-Channel High Definition Audio CODEC * - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

Audio Feature :

• LED-illuminated design
• Audio Shielding
• Dedicated audio PCB layers
• Premium Japanese audio capacitors

* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

USB Ports

Rear USB Port ( Total 6 ) 2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

Front USB Port ( Total 6 ) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)

Software Features

ASUS Exclusive Software

Armoury Crate

• AURA Creator
• AURA Sync

AI Suite 3 - Performance and Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

PC Cleaner

• EZ update
• System Information

ASUS CPU-Z

AI Charger

ASUS EZ Installer

DAEMON Tools

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

ASUS Special Features

ASUS 5X PROTECTION III

• ASUS DIGI+ VRM
• ASUS LANGuard
• ASUS Overvoltage Protection
• ASUS SafeSlot Core
• ASUS Stainless-Steel Back I/O

ASUS Q-Design

• ASUS Q-DIMM
• ASUS Q-Slot

ASUS Thermal Solution - Aluminum heatsink design

• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED

AURA Sync - AURA RGB header

ASUS Lighting Control

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s) 1 x BIOS FlashBack™ Button(s)

Internal I/O Ports 1 x CPU Fan connector(s) (1 x 4 -pin) 2 x Chassis Fan connector(s) (2 x 4 -pin) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x Speaker connector 1 x RGB Header

Accessories

User's manual

I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD

BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows® 10 64-bit

Windows® 7 64-bit *2

Form Factor mATX Form Factor 9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )

Note 1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed. 2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
