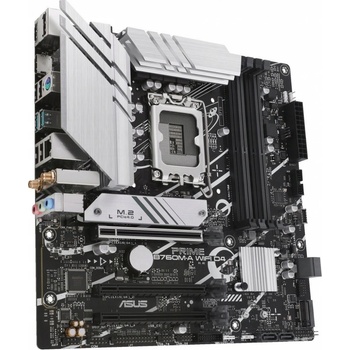

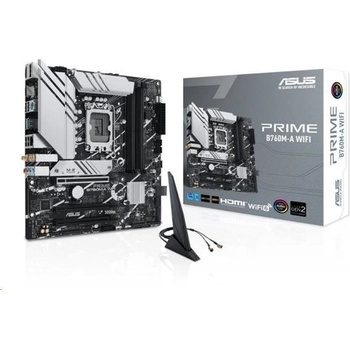

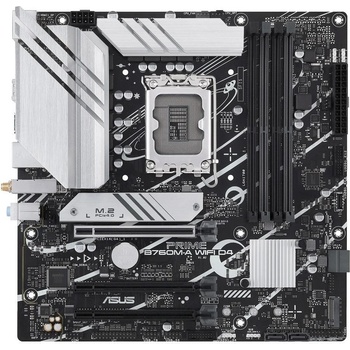

Asus PRIME B760M-A WIFI D4 90MB1CX0-M0EAY0

Základná doska Intel® B760 (LGA 1700) formát mATX s PCIe 4.0, DDR5, dva sloty M.2, Realtek 2,5Gb Ethernet, Wi-Fi 6, DisplayPort, dvě HDMI™, SATA 6 Gb/s, zadné USB 3.2 Gen 2, predné USB 3.2 Gen 1 Type-C®, Aura Sync

• Veľmi rýchle pripojenie: PCIe 4.0, dva sloty M.2, Realtek 2,5Gb Ethernet, Wi-Fi 6, zadné USB 3.2 Gen 2, predné USB 3.2 Gen 1 Type-C®
• Komplexné chladenie: Chladič VRM, chladič M.2, chladič PCH, hybridné headery ventilátorov a Fan Xpert 2+
• Exkluzívna pamäťová technológia: ASUS Enhanced Memory Profile II a ASUS OptiMem II
• Osvetlenie Aura Sync RGB: Integrované adresovateľné headery Gen 2 a header Aura RGB pre pásky RGB LED, ľahko synchronizovateľné s hardvérom podporujúcim Aura Sync

Špecifikácia:

CPU

Intel® Socket LGA1700 for 14th - 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Refer to www.asus.com for CPU support list.
• * Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® B760 Chipset

Memory 4 x DIMM slots, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

• Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics 1 x DisplayPort** 2 x HDMITM ports***

• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• ** Supports 4K@60Hz as specified in HDMITM 2.1.

Expansion Slots

Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot

Intel® B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet 1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth

Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2 * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers

Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports

USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port

Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

ASUS 5X PROTECTION III

• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM
• Q-LED Core
• Q-Slot

ASUS Thermal Solution

• M.2 heatsink
• VRM heatsink design

• ASUS EZ DIY
  • ProCool

Aura Sync

• Aura RGB header
• Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armoury Crate

• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving

AI Suite 3

• Digi+ VRM
• PC Cleaner

ASUS CPU-Z

MyAsus

Norton Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD

Documentation 1 x User guide

Operating System

Windows® 11, Windows® 10 64-bit

Form Factor mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
