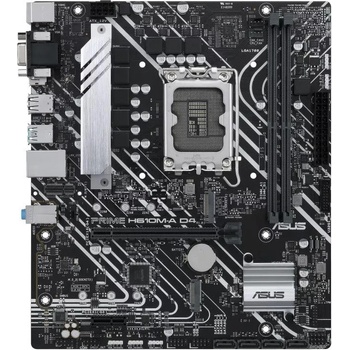

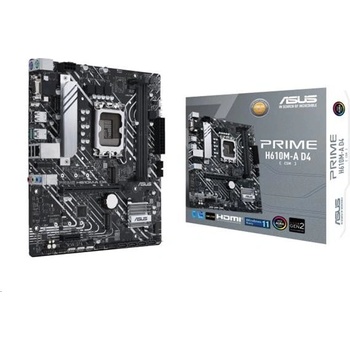

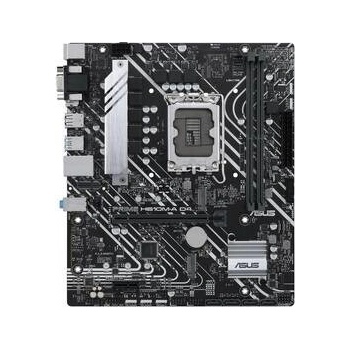

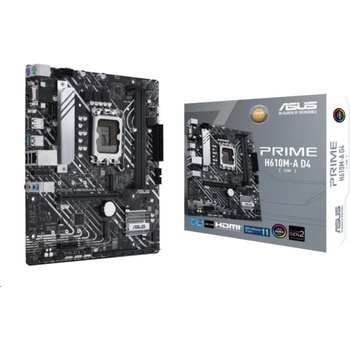

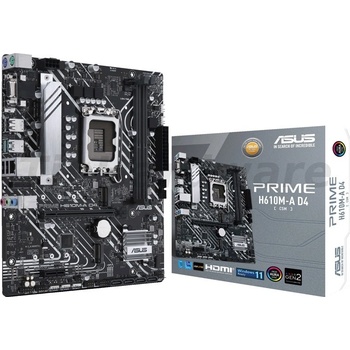

Asus PRIME H610M-A D4-CSM 90MB19P0-M0EAYC
Doporučené nabídky (4)
Nejlevnější nabídky (30)
Autorizovaný prodejce
Popis produktu
Parametry produktu
Parametry produktu
Popis produktu
S nákupom základnej dosky ASUS CSM získavate licenciu ASUS Control Center - centralizovaný softvér pre správu IT
Pomáha optimalizovať správu IT koncových bodov, ich automatickú údržbu a bezpečné ovládanie.
Pomáha v monitorovaní a ovládaní všetkých zariadení v rámci svojich firemných sietí a zjednodušoval vzdialenú kontrolu inventára na viacerých miestach zároveň.
Umožňuje naplánovať automatické aktualizácie najnovšieho systému BIOS, softvéru a pomôcok pre všetky zariadenia mimo prevádzkovú špičku, čo zvyšuje stabilitu systému a prevádzkovú flexibilitu IT.
Bezpečne spravujte konfiguráciu koncových bodov, prístup k úložiskám a všetky svoje softvérové aplikácie tým, že umožníte vytvárať pravidlá zoskupovania na jednotlivých zariadeniach.s
Špecifikácia:
CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
- Refer to www.asus.com for CPU support list.
- * Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset Intel® H610 Chipset
Memory 2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
- Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics 1 x DisplayPort** 1 x VGA port 1 x HDMITM port***
- Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- * Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- ** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot
Intel® H610 Chipset 1 x PCIe 3.0 x1 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet 1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth "Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately."
USB Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio "Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Vertical M.2 slot (Key E) 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers
Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution - VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
AI Suite 3 - Performance And Power Saving Utility
TurboV EVO
EPU
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories Cables 2 x SATA 6Gb/s cables
Miscellaneous 1 x I/O Shield 1 x Screw package for M.2 SSD
Documentation 1 x User guide
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor mATX Form Factor 9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
