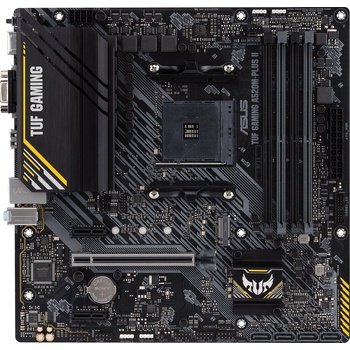

Asus TUF GAMING A520M-PLUS II 90MB17G0-M0EAY0

Základná doska AMD A520 (s päticou Ryzen AM4) veľkosti micro ATX s podporou rozhrania M.2, portami HDMI, DisplayPort, D-Sub, USB 3.2 Gen 1, rozhraním SATA s prenosovou rýchlosťou 6 Gb/s a s konektormi pre pripojenie upraviteľného osvetlenia AURA 2. generácie

• Pätica AMD AM4: pripravená na procesory Ryzen™ radu 5000/4000G/3000 pre stolné počítače
• Komplexné chladenie: rozmerný chladič napájacej kaskády, chladič čipsetu (PCH) a nástroj Fan Xpert 2+
• Stvorená pre online hranie: technológie TUF LANGuard a TurboLAN
• Osvetlenie Aura Sync RGB: na doske sa nachádzajú konektory pre pripojenie RGB osvetlenia a pre pripojenie pásikov s RGB LED osvetlením 2. generácie, pričom môžete tieto pásiky jednoducho synchronizovať s hardvérom, ktorý podporuje technológiu Aura Sync

CPU

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *Refer to www.asus.com for CPU support list.

Chipset

A520

Memory 4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

• ECC Memory (ECC mode) support varies by CPU.
• Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics 1 x DisplayPort 1.2 1 x HDMITM 2.1(4K@60Hz) 1 x D-Sub *Graphics specifications may vary between CPU types.

Expansion Slots

AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) 2 x PCIe 3.0 x1 slots

Storage

Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD A520 Chipset 4 x SATA 6Gb/s ports

Support RAID 0, 1, 10

Ethernet 1 x Realtek 1Gb Ethernet

TUF LANGuard

USB

Rear USB:Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

• Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"

Audio Features

• Audio Shielding
• Premium Japanese audio capacitors
• Dedicated audio PCB layers

*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x BIOS FlashBack™ button 1 x DisplayPort 1 x HDMI port 1 x D-Sub 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers

Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports

USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Special Features

• ASUS TUF PROTECTION
  • DIGI+ VRM
  • ESD Guards
  • TUF LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • ASUS Stainless-Steel Back I/O

ASUS Q-Design

• Q-DIMM
• Q-Slot

ASUS Thermal Solution - VRM heatsink design

• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED

AURA Sync

• AURA RGB headers
• Addressable Gen 2 RGB headers

Software Features

ASUS Exclusive Software

Armoury Crate

• Aura Creator
• Aura Sync

AI Suite 3 - Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert 2+

• EZ update
• PC Cleaner
• System Information

TUF GAMING CPU-Z

AI Charger

ASUS Turbo LAN

DAEMON Tools

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables 2 x SATA 6Gb/s cables

Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x TUF Gaming sticker

Installation Media 1 x Support DVD

Documentation 1 x TUF Certification card 1 x User manual

Form Factor microATX 24.4cm x 24.4cm
