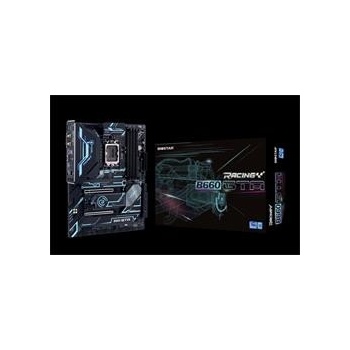

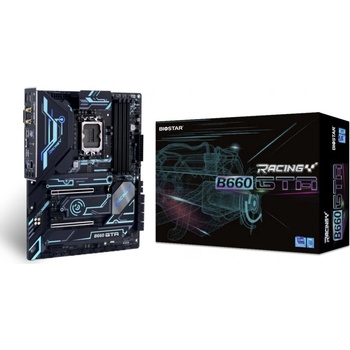

Biostar B660GTA

Recenze desky na ddworld.cz zde

Main Board Desktop - Processor

Chipset:

Intel B660

Supports Central Processor Unit:

Intel 12th Gen Processors

CPU Socket Standard:

Socket 1700

CPU Maximum Quantity Supports: 1

Main Board Desktop - Memory

Memory Type:

DDR4 SDRAM

Memory Form Factor:

DIMM 288-pin

Memory Speed: 1866MHz(PC4-14900) 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600)

Maximum Installable System Memory Storage Capacity: 128 GB

Memory Slot Total Quantity: 4

Provides Error Checking Method: non-ECC

Memory Features:

XMP

Controller

Integrated:

Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (8)

Storage Controller:

PCIe 3.0 x4/SATA (1 x M.2 (Key M))

Storage Controller:

PCI Express 4.0 x4 (2 x M.2 (Key M))

Support:

Wi-Fi Controller: 1 x M.2 (Key E)

Main Board Desktop - Audio Output

Audio Integrated: yes

Device Location:

Integrated

Audio Chipset:

Realtek ALC1220

Audio Output Mode: 7.1 Channel Surround

Compliant Audio Standards:

High Definition Audio

Main Board Desktop - Networking Specifications

LAN Integrated: yes

LAN Chipset:

Realtek RTL8125B

Data Link Protocol Supports:

Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps

Slot Provided

PCI Express 4.0 x16: 1

PCI Express 5.0 x16: 1

PCI Express 3.0 x1: 2

Interface Provided

PS/2: 1

HDMI: 1 (HDMI (Type A))

DisplayPort: 1

DVI: 1 (DVI-D)

USB 3.2 Gen 2: 1 (USB 3.2 (type C)); 5 (USB 3.2 (type A))

USB 2.0: 2 (USB 2.0 (type A))

LAN: 1 (RJ-45)

Audio Interface: 3 (3.5-mm minijack)

Main Board Desktop - Mainboard Features

Power Connectors Type: 24+8+4 pin

Mainboard Features:

Intel Optane Memory Ready

Main Board Desktop - Software

Software Included:

Intel Rapid Storage Technology

Supported Operating System:

Microsoft Windows 10 64-bit

Microsoft Windows 11 64-bit

Miscellaneous

Cable Included: 4 x SATA Data Cables

Included Accessories:

User Guide

Driver CD

Main Board Desktop - Dimensions&Weight

Form Factor:

ATX

Height (mm): 244 mm

Width (mm): 305 mm
