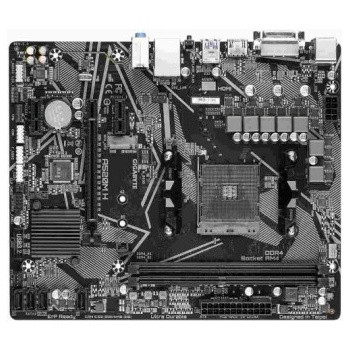

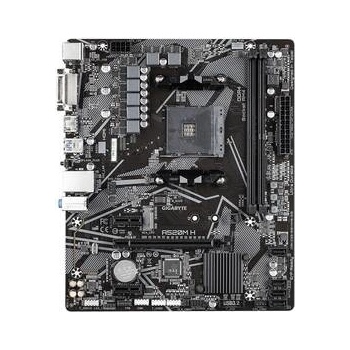

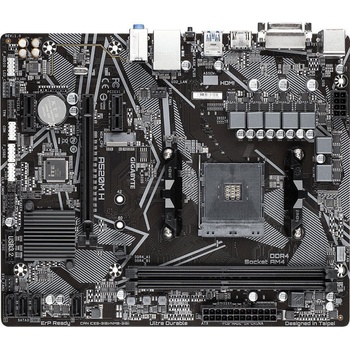

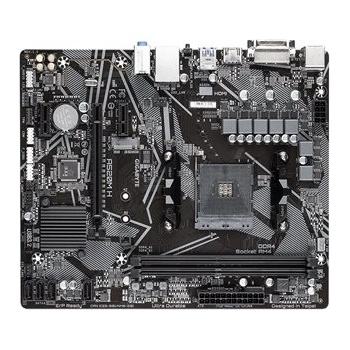

Gigabyte A520M H
Gigabyte A520M H
Doporučené nabídky (4)
Autorizovaný prodejce
Nejlevnější nabídky (37)
Autorizovaný prodejcePopis produktu
Parametry produktu
Recenze
, zakoupeno v Alza.cz
cena vs výkon
, zakoupeno v Alza.cz
ok
, zakoupeno v suntech.cz
- Jako levný základ OK
- Deska co přišla měla nahranou poslední verzi BIOS
K CPU Ryzen 5 4600G do kanceláře v pohodě :)
Parametry produktu
Popis produktu
Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD A520
Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory 3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek® ALC887 codec
High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
Storage Interface
CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset: 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB
CPU: 4 x USB 3.2 Gen 1 ports on the back panel
Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x chassis intrusion header 1 x Clear CMOS jumper
Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x Q-Flash Plus button 1 x RJ-45 port 3 x audio jacks
I/O Controller iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 20.5cm
Podívejte se, kde můžete produkt koupit:
Autorizovaný prodejceChybí či je nepravdivý některý důležitý parametr? Uvedené informace jsou pouze orientační, před zakoupením ve vybraném obchodě doporučujeme ověřit, že prodávaný model má klíčové vlastnosti dle vašich požadavků. I když se snažíme o maximální přesnost informací, bohužel nemůžeme zaručit jeho 100% správnost. Ceny produktů jsou uváděny včetně DPH.
Hodnocení produktu
, zakoupeno v Alza.cz
cena vs výkon
, zakoupeno v Alza.cz
ok
, zakoupeno v suntech.cz
- Jako levný základ OK
- Deska co přišla měla nahranou poslední verzi BIOS
K CPU Ryzen 5 4600G do kanceláře v pohodě :)
, zakoupeno v Alza.cz
- cena
, zakoupeno v CZC.cz
Dobře vybavená moderní deska.
Dobrá cena
