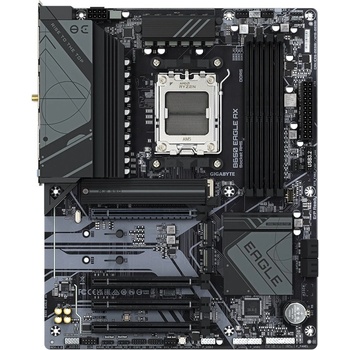

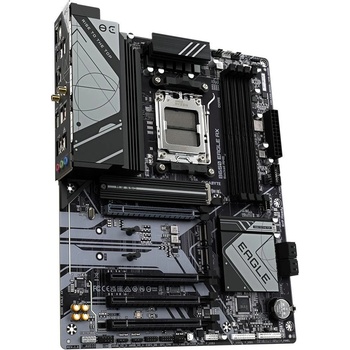

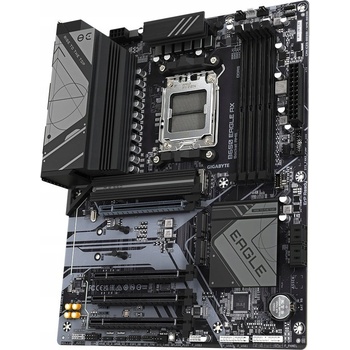

Gigabyte B650 EAGLE AX

• GIGABYTE B650 EAGLE AX
  • AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
  • Unparalleled Performance:12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
  • SuperSpeed Storage:1*PCIe 5.0 + 2*PCIe 4.0 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD Performance
  • EZ-Latch:PCIe x16 Slot with Quick Release Design
  • Fast Networks:Wi-Fi 6E 802.11ax & GbE LAN
  • Extended Connectivity:DP, HDMI, Rear USB 10Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD B650

Memory

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme

Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support

List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3.
• * Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek Audio CODEC

High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication module

Realtek Wi-Fi 6E RTL8852CE

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset: - 3 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

Storage Interface

CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSD support) (M2P_CPU)

Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) - 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel

Chipset:

• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the

internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/

GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper

Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks

I/O Controller iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
