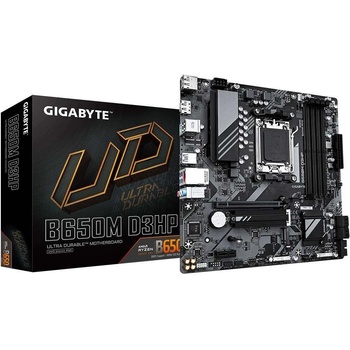

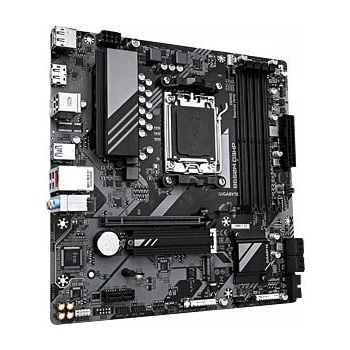

Gigabyte B650M D3HP

• GIGABYTE B650M D3HP
  • AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance:5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel XMP Memory Module Support
  • SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
  • EZ-Latch:PCIe x16 Slot with Quick Release Design
  • Fast Networks:2.5GbE LAN
  • Extended Connectivity:2*DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

CHIPSET

AMD B650

CPU

AMD Socket AM5, support for:

AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.)

MEMORY

Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

ONBOARD GRAPHICS

Integrated Graphics Processor with AMD Radeon™ Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

• Support for HDMI 2.1 version and HDCP 2.3.
• * Support for native HDMI 2.1 TMDS compatible ports.

Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.)

EXPANSION SLOT

CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

STORAGE

Integrated in the CPU: - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
• 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

• 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 port on the back panel
• 1 x USB 2.0/1.1 port on the back panel

Chipset:

• 2 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
• 2 x USB 3.2 Gen 1 ports available through the internal USB header
• 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

AUDIO

Realtek Audio CODEC

High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

INTERNAL I/O 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

BACK PANEL PORTS 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks

I/O Controller iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control * Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm

Co je v krabici 2x M.2 Screw 2x SATA Cable

WiFi Antenna

WiFi Bracket

I/O Shield
