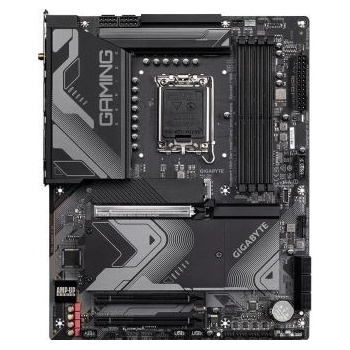

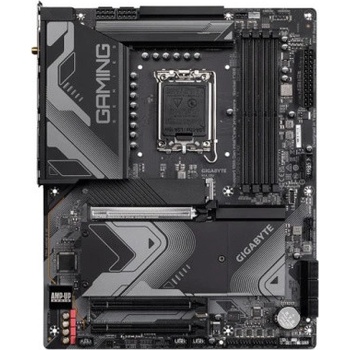

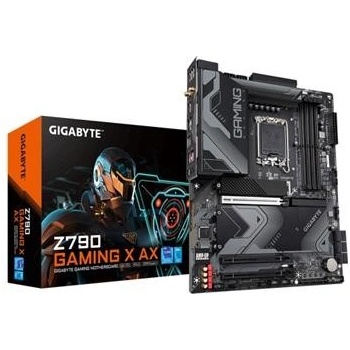

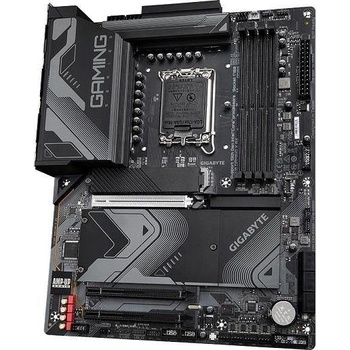

Gigabyte Z790 GAMING X AX

• Z790 GAMING X AX
  • Intel Socket LGA 1700:Support 13th and 12th Gen Series Processors
  • Unparalleled Performance:Twin 16*+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage:4*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus:M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity:DP, HDMI, Front USB-C 10Gb/s, Rear USB-C 20Gb/s
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
  • * 8+8 phases parallel power design

CPU

LGA1700 socket: Support for the 13th and 12th Generation Intel Core™, Pentium Gold and Celeron Processors

L3 cache varies with CPU (Please refer "CPU Support List" for more information.)

Chipset

Intel Z790 Express Chipset

Memory

Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)

Audio

Realtek Audio CODEC

High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Intel Wi-Fi 6E AX211

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.3

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.

Expansion Slots

CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)

Storage Interface

CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

Back Panel Connectors 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x DisplayPort 1 x HDMI 2.0 port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

I/O Controller iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor

ATX Form Factor; 30.5cm x 24.4cm
