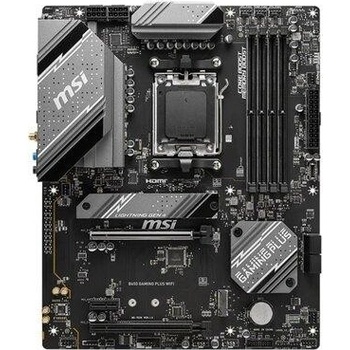

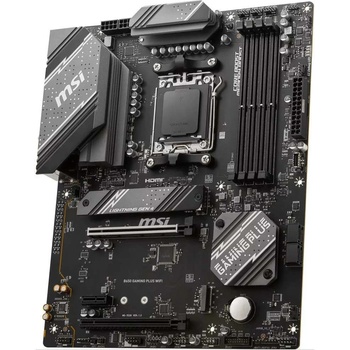

MSI B650 GAMING PLUS WIFI
B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
CPU
Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset
AMD B650
MEMORY 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
- 1DPC 1R Max speed up to 7200+ MHz
- 1DPC 2R Max speed up to 6000+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
ONBOARD GRAPHICS 1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort
Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot 1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
MULTI-GPU
AMD MULTI-GPU Support
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Realtek 8125BG 2.5G LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3**
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- * Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
Realtek ALC897 Codec 7.1-Channel High Definition Audio
INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS 1x DisplayPort 1x 2.5G LAN 1x USB 3.2 Gen 2 10Gbps (Type-A) 4x USB 3.2 Gen 1 5Gbps (Type-A) 2x Wi-Fi / Bluetooth 6x Audio connectors 1x Flash BIOS Button 1x HDMI™ 2x USB 3.2 Gen 2 10Gbps (Type-A) 1x USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM
Support for Windows 11 64-bit, Windows 10 64-bit
PCB DIMENSION (W × L)
ATX 243.84mmx304.8mm
BOX CONTENT 1x Wi-Fi Antenna 1x SATA Cable 1x I/O Shield 1x Quick Guide 2x EZ M.2 Clips
