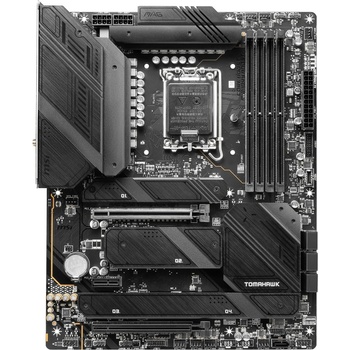

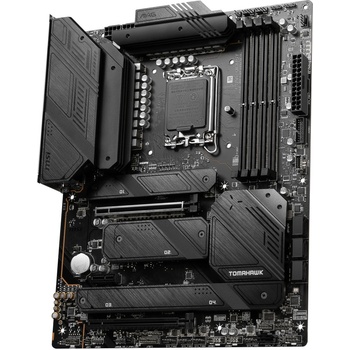

MSI MAG Z790 TOMAHAWK WIFI

• MAG Z790 TOMAHAWK WIFI
  • Supports 12th/ 13th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket

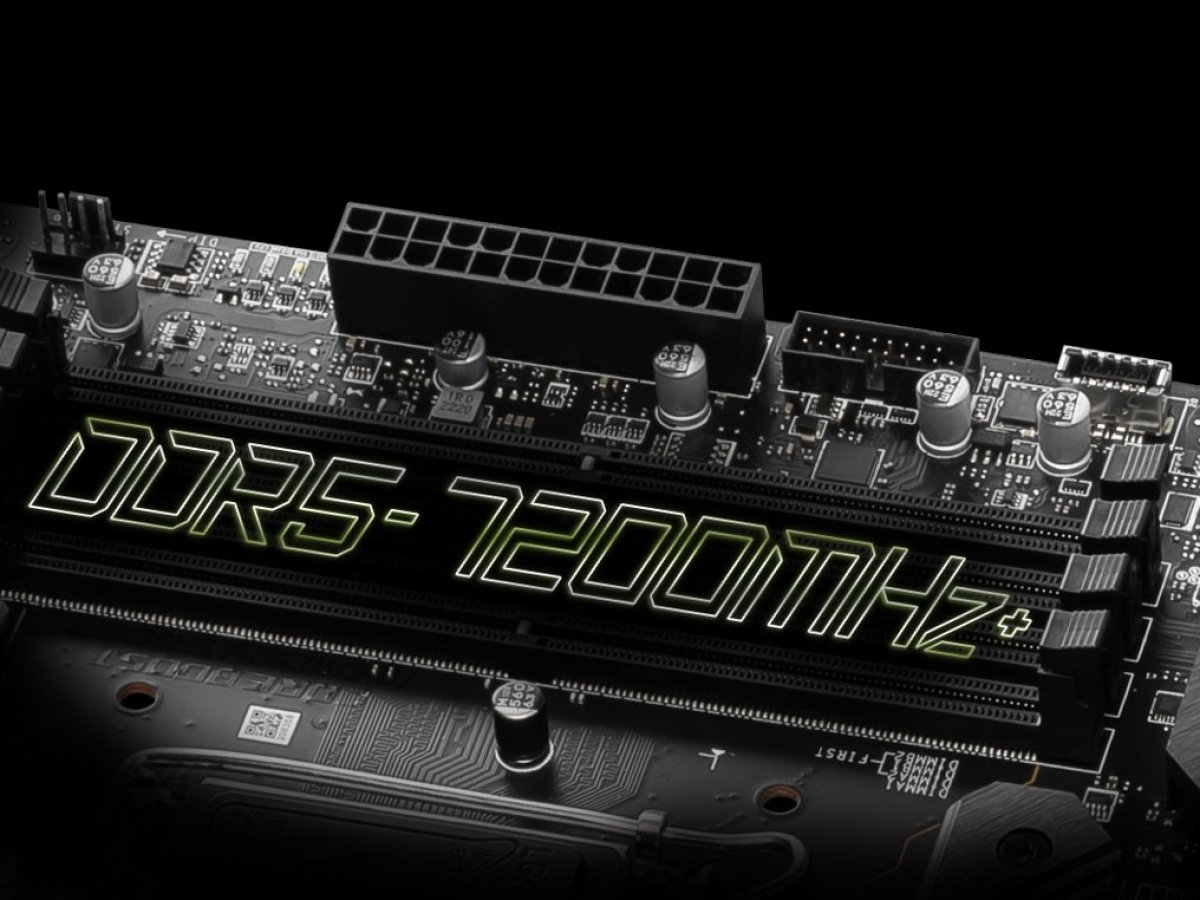

  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

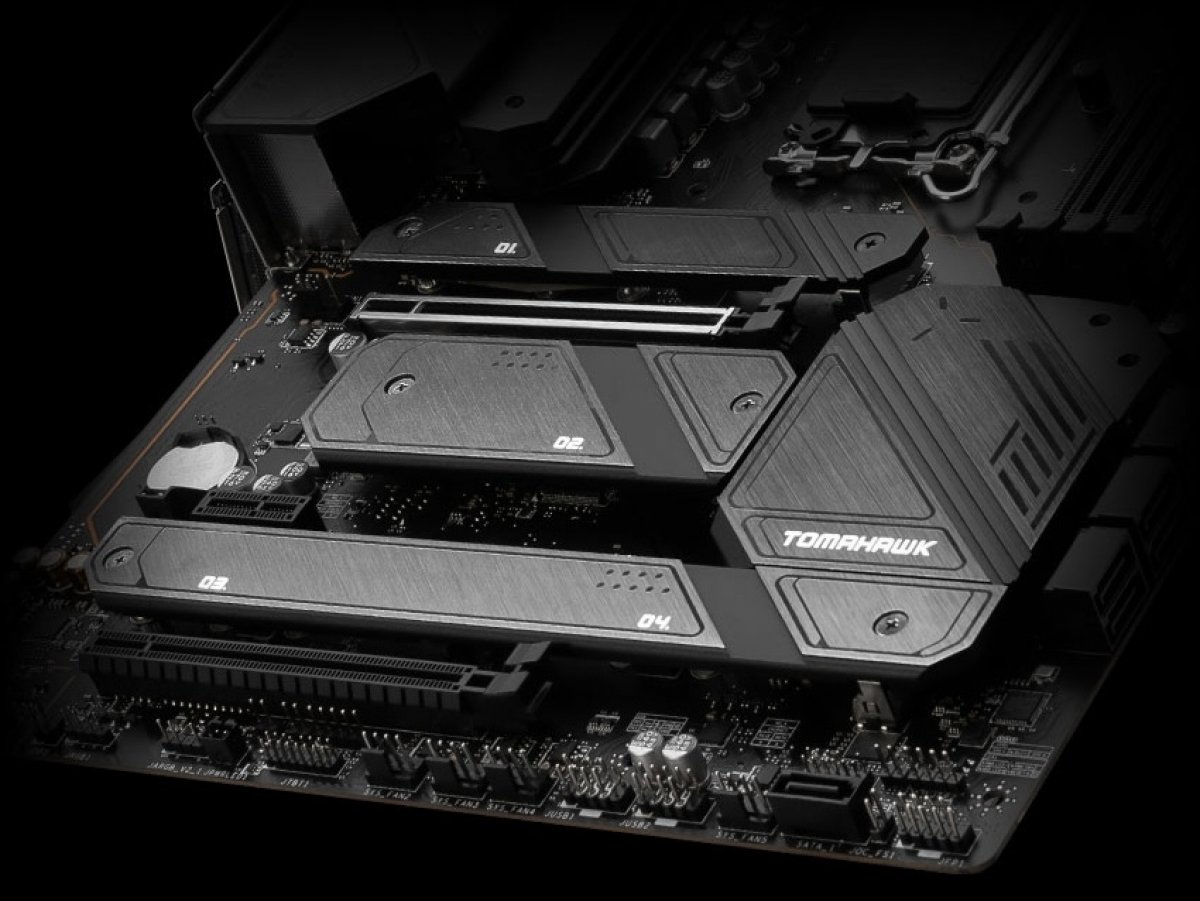

  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

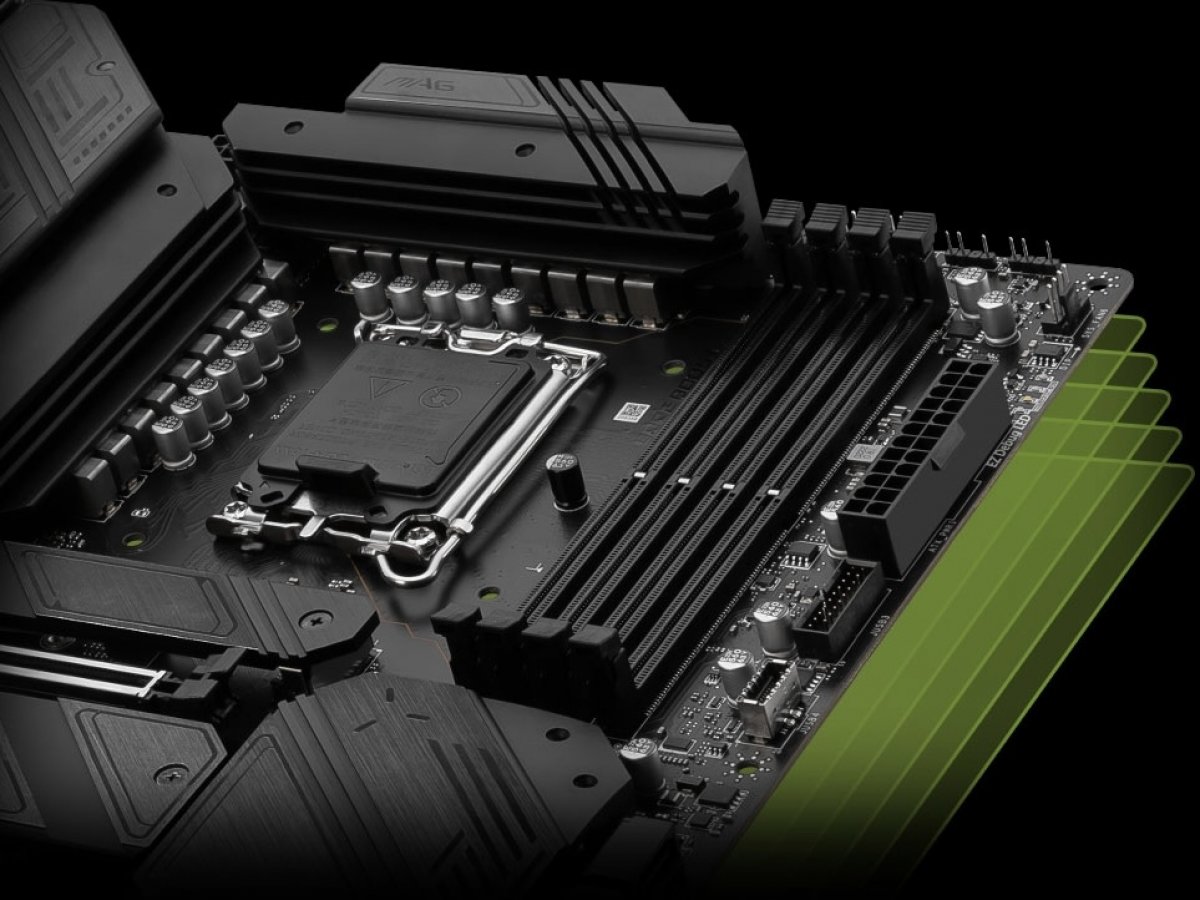

  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

CHIPSET

INTEL Z790

CPU SUPPORT

Supports 12th/13th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors

MEMORY 4x DDR5, Maximum Memory Capacity 128GB

Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

Max. overclocking frequency:

• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS 1x HDMI™ 1x DisplayPort

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT 2x PCI-E x16 slot

Supports x16/x4 1x PCI-E x1 slot

PCI_E1 PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)

STORAGE 4x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 7x SATA 6G port

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.

USB 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)

LAN

Intel 2.5Gbps LAN

WIRELESS / BLUETOOTH

Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth 5.2**, FIPS, FISMA

• Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
• * Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.

AUDIO

Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C

LED FEATURE 4x EZ Debug LED

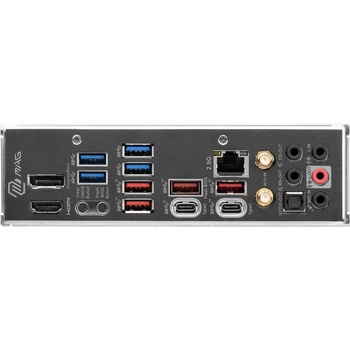

BACK PANEL PORTS

DisplayPort 1.4

USB 3.2 Gen 1 5Gbps Type-A

USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port,

HD Audio Connectors

HDMI™ 2.1 Port

Clear CMOS Button

Flash BIOS Button

USB 3.2 Gen 2 10Gbps Type-C

USB 3.2 Gen 2x2 20Gbps Type-C

Wi-Fi / Bluetooth Antenna

Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows 11 64-bit, Windows 10 64-bit

PCB DIMENSION

ATX 243.84mmx304.8mm
