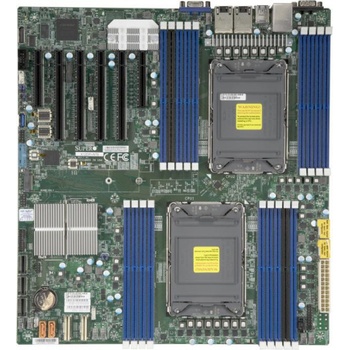

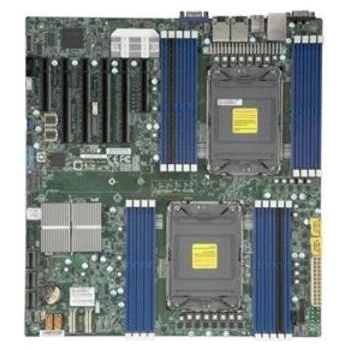

Supermicro MBD-X12DPI-N6-B

3rd Gen Intel® Xeon® Scalable processors

Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Intel® C621A

Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz

Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only. 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16,2 PCI-E 4.0 NVMe x8 Internal Port(s)

M.2 Interface: 1 PCI-E 4.0 x4         M.2 Form Factor: 2280/22110     M.2 Key: M-Key

Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Dual LAN with 10GBase-T with Intel® X550 2 VGA (1 rear bezel, 1 front panel) ports

Specifications

Product SKUs

MBD-X12DPi-NT6

X12DPi-NT6

Physical Stats

Form Factor

E-ATX

Dimension 12" x 13" (30.48cm x 33.02cm)

Processor

CPU 3rd Gen Intel® Xeon® Scalable processors

Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Core

Up to 40 cores

System Memory

Memory Capacity 18 DIMM slots

Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz

Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz

P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.

Memory Type 3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM

DIMM Sizes

• LRDIMM: 256GB
• RDIMM: 256GB

Memory Voltage 1.2V

Error Detection

Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset

Intel® C621A

SATA

Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI

ASPEED AST2600 BMC

Network Controllers

Dual LAN with 10GBase-T with Intel® X550

Input / Output

SATA 14 SATA3 (6Gbps) port(s)

LAN 2 RJ45 10 Gigabit Ethernet LAN ports

USB 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A) 2 USB 2.0 port(s) (2 via header)

Video Output 2 VGA (1 rear bezel, 1 front panel) port(s)

Serial Port 2 COM Port(s) (1 header; 1 rear)

TPM 1 TPM Header

Expansion Slots

PCI-E 4 PCI-E 4.0 x16, 2 PCI-E 4.0 x8

M.2

• M.2 Interface: 1 PCI-E 4.0 x4
• Form Factor: 2280/22110
• Key: M-Key

System BIOS

BIOS Type

AMI UEFI

Management

Software

SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

System Management Software

IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support

PC Health Monitoring

Voltage

VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status

LED

UID/Remote UID

Power LED

BMC/IPMI Heartbeat LED

FAN 8x 4-pin fan headers (up to 8 fans)

PWM fan speed control

Other Features

WOL

UID

RoHS

Node Manager Support

Dual Cooling Zones

CPU thermal trip support for processor protection

Control of power-on for recovery from AC power loss

Chassis intrusion header

ATX Power connector

ACPI power management

SDDC

RoT

NCSI header

Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non Operating Relative Humidity Range 5% - 95% (non-condensing)

Parts List

Parts List (Bulk Package)

Name

Part Number

Qty

Description

Motherboard

MBD-X12DPi-NT6 1

X12DPi-NT6 Motherboard

CPU carrier

SKT-1205L-P4IC-FXC 2

CPU carrier for 3rd Gen Intel Xeon Scalable Processors

I/O Cables

CBL-0044L •  2 57.5 cm SATA FLAT S-S PBF

I/O Shield

MCP-260-00042-0N •  1

STD I/O SHIELD

Parts List (Retail Package)

Name

Part Number

Qty

Description

Motherboard

MBD-X12DPi-NT6 1

X12DPi-NT6 Motherboard

CPU carrier

SKT-1205L-P4IC-FXC 2

CPU carrier for 3rd Gen Intel Xeon Scalable Processors

I/O Cables

CBL-0044L •

CBL-0476L •  2 1 57.5 cm SATA FLAT S-S PBF

IPASS to 4 SATA cable

I/O Shield

MCP-260-00042-0N •  1

STD I/O SHIELD

Quick Reference Guide

MNL-2233-QRG 1

X12DPi-N(T)6 Quick Reference Guide

Optional Parts List

Name

Part Number

Qty

Description

TPM security module (optional, not included)

AOM-TPM-9671H

AOM-TPM-9671V

AOM-TPM-9670V

AOM-TPM-9670H 1 1 1 1

SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor

SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor

SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor

SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor

Chassis (Optimized for X12DPi-NT6)

Embedded Compact 1U 2U 3U

Mid/Mini-Tower             4U/Tower                    SC825BTQC-R1K23LPB  SC826BAC12-R1K23LPB  SC213BAC8-R1K23LPB

•  2U Heatsink:SNK-P0078P (Rear)
•  2U Heatsink:SNK-P0078PC (Front)

 SC825BTQC-R1K23LPB      SC745BAC-R1K23B  2U Heatsink:SNK-P0078P  = Most optimized Chassis for SuperServer Configuration

Blue color = Compatible

Green color = Global SKU & Compatible

Red dot & green color = Optimized + Global SKU

Server (Optimized for X12DPi-NT6)

Server Name

SYS-220P-C9RT

SYS-620P-TRT

SYS-740P-TRT

SSG-620P-ACR12H

SSG-620P-ACR12L

SSG-620P-ACR16H

SSG-620P-ACR16L

SSG-640P-E1CR24L

SSG-640P-E1CR24H

SSG-640P-E1CR36L

SSG-640P-E1CR36H
